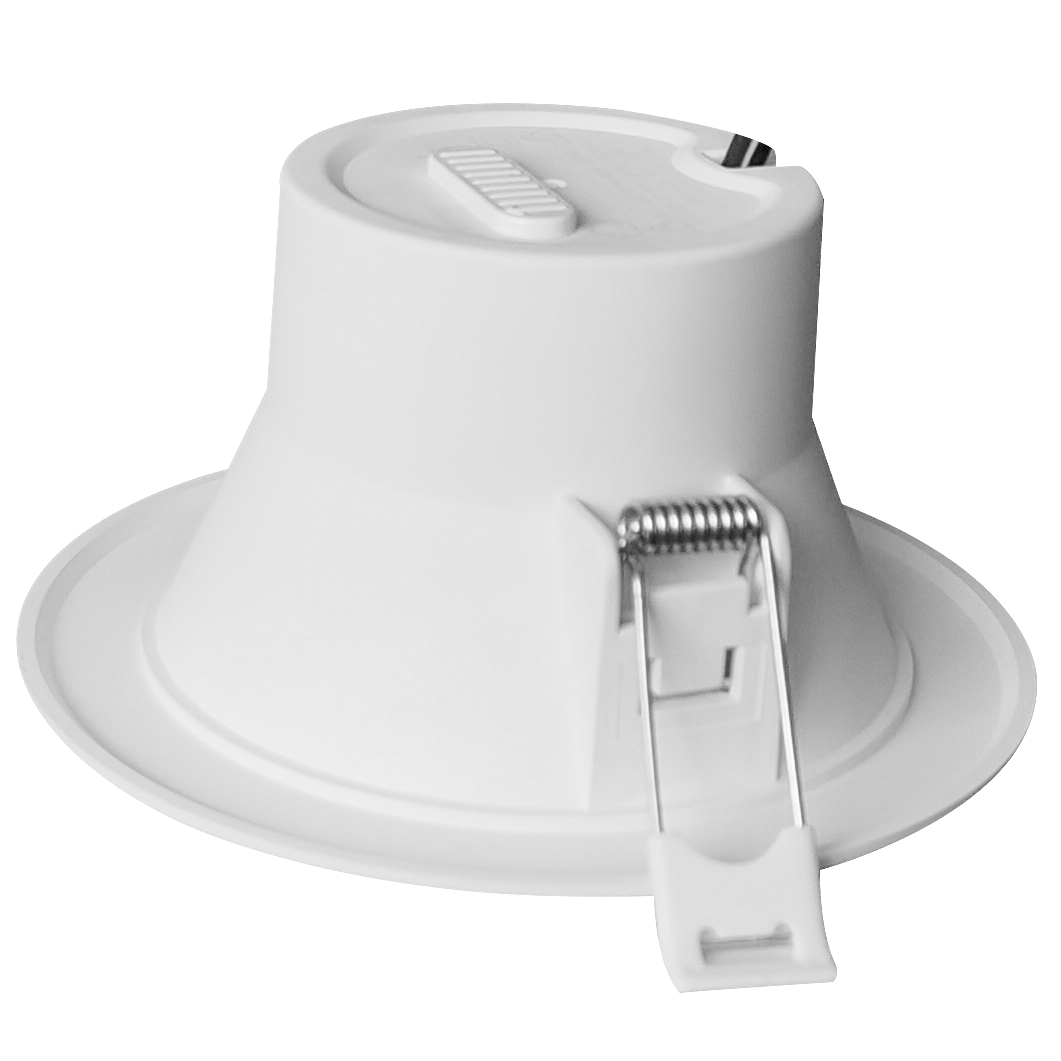

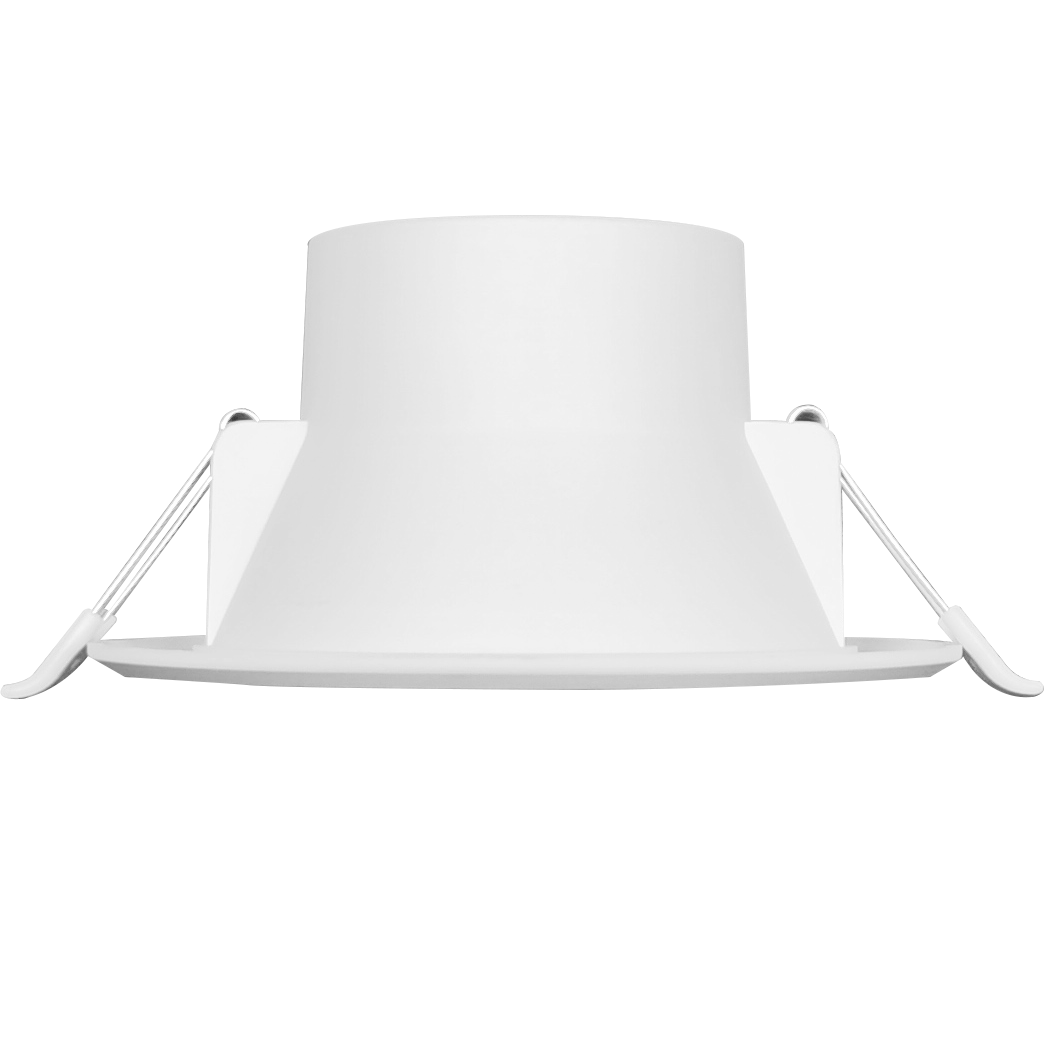

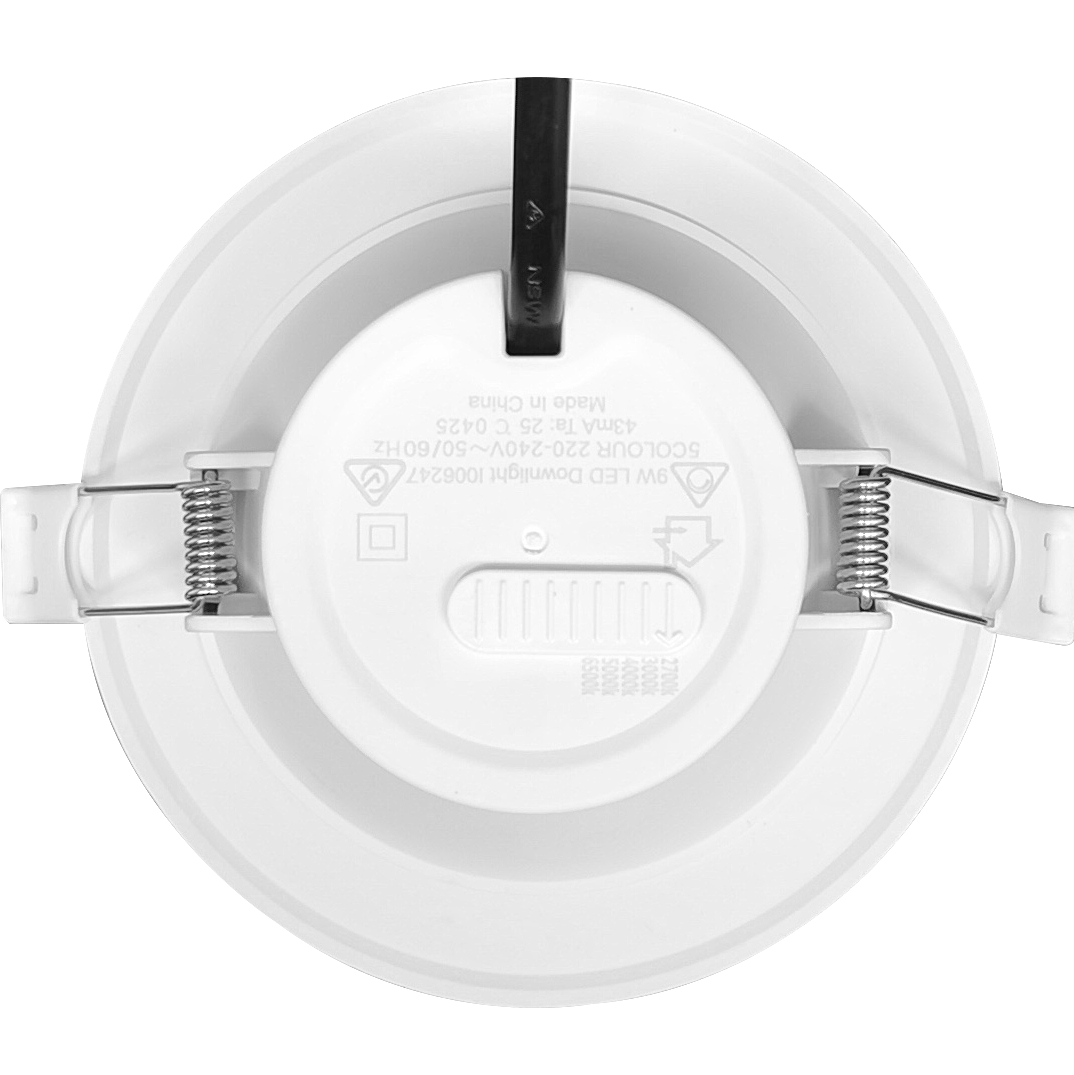

ClassiBrite Recessed LED downlight D1090-WH-5CT
classic compact design with built-in Dimmable LED driver.
IP54 rating front cover design, suitable for damp environment.
No yellowing frosted PC diffuser ensures the high light
transmittance and uniform lighting output.
Features
High Luminous Efficacy: 100-110lm/W
8W Low Power Consumption
2700K/3000K/4000K/5000K/6500K 5CCT in 1
High Color Rendering Index: 90Ra
Lower Color Tolerance: SDCM≤3 for all CCT
Easy to install with flex and plug
High Voltage Surge Protection
Flicker Free
3 Years Warranty
Triac Dimmable with DIGINET and major Australian dimmers
Sustainable and ECO-friendly packaging
PRODUCT TYPE: Flush Face LED Downlight
PRODUCT CODE: D1090-WH-5CT
BODY COLOUR: White
BODY MATERIAL: Aluminium built-in Polyamide PA-6
DIFFUSED: Yes. Flush
DIFFUSER MATERIAL: Polycarbonate
DIFFUSER COLOUR: Frosted | Operation
INPUT VOLTAGE: 220 ~ 240Vac
INPUT FREQUENCY: 50 ~ 60Hz
ELECTRICAL RATING: Class II
CCT: 5-Colour 2700K, 3000K, 4000K, 5000K, 6500K
WATTAGE: 8W
IP RATING: IP54 for the front face
TEMP RANGE: -20° ~ +40°C
Lumens: 800 ~ 900
CRI: 90Ra
POWER FACTOR: >0.9
SDCM: <3
Beam Angle: 100°
IC rating: IC-4 / IC-F
Warranty: 3 Years
STANDARDS: AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 61347.1, AS/NZS 61347.2.13 AS CISPR 15 | Driver
DRIVER DIMMABLE: Yes
DRIVER POSITION: Built-in
DIMMING TYPE: Triac Dimming
FLICKER: Flicker free
CONNECTION TYPE: Flex & Plug
INPUT CURRENT: 0.05A
OUPUT VOLTAGE: 410 ~ 450Vdc
OUTPUT CURRENT: 18Ma
PROTECTION: Short Circuit, Over Voltage, Over Current, Over Temperature, Surge Voltage Protection
| Dimension & Weight
DIAMETER (mm): 115
HEIGHT (mm): 60
CUTOUT DIAMETER (mm): 90-100 |
